Sku: DF702-2M

AUD$185.00
Availability: Many In Stock
Sku: DF702-2M
Dingtek

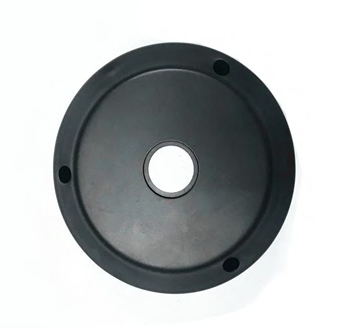

The DF702 sensor (battery included) is designed for waste bin (trash bin) status detection. It detect full/empty, flame risk, inclined (fall) or not and etc.


With LoRaWAN® module, it transmit the status via gateway to networks server and
application server. User can monitor the status remotely. With the application software, user can assign the collector resource work plan and route plan. Analyze task performance and find out solution to improve. Finally the objective of high efficiency , good environment, and low cost are achieved. It is optional for different frequency, such as 470Mhz (China), 868Mhz (Europe), 915Mhz(USA), 923Mhz (Australia,New Zealand).


As it is with algorithm of low power consumption, the internal battery can work for
more than 5 years (at 4 hours interval upload interval).



Feature:

DF702 feature

Applications:

  • For waste bin with or without cover.
  • Water Level measurement



Specifications:






Overview
Dimension
115*115*50mm
Net Weight
150g
Color
Black
Shell Material
ABS



Detector
Principle
Ultrasonic @ 112kHz
Detection Range
200cm (vertical)
Accuracy of height
3mm
Blind area
15cm
Accuracy of temperature
2℃
Accuracy of angel
2° (optional)
MCU
STM32, 32bit ARM® core controller
LoRa Module
Semtech® 1276
Controller
Sensitivity
"-137dbm@292bps (RX), 5~20dbm(Tx)




Radio

Frequency

LoRaWAN®

CN470/EU868/US915/AS923Mhz,or

Working Mode

Class A

Activation

ABP/OTAA activation;



Communication Distance

3km in view sight;





Power

Lifetime for one charge

5 years at 4 hours report interval.

Internal Battery

ER18505M non-recharged Lithium Battery

7000mAh @ 3.6V,









Current

<210mA@3.6V(uploading),

<100mA@3.6V(normal),





Environment

Operating Temperature

-20 ~ +70℃

Storage Temperature

-40 ~ +85℃

Protection Level

IP66



LoRaWAN frequency and Countries/Regions

Frequency

Status

Countries/Regions



EU868



OK



Europe and other



























AU915, AS923



























OK

Australia

New Zealand

Brunei

Cambodia

Hongkong

Indonesia

Japan

Laos

Singapore

Taiwan

Thailand

Vietnam

CN470

OK

China

US915

OK

USA

KR920

OK

Korea





Datasheet:                DF702.pdf

Operation manual:      DF702 manual.pdf

Configure manual:      DF702 config manual.pdf

UART assist program: UARTASSIST.zip

DF702-2Meter - Dingtek Waste Bin Detector for waste management, 2 meter version
