Sku: N95S31B

$80.00
Availability: Many In Stock
Sku: N95S31B
NBIoT
Dragino

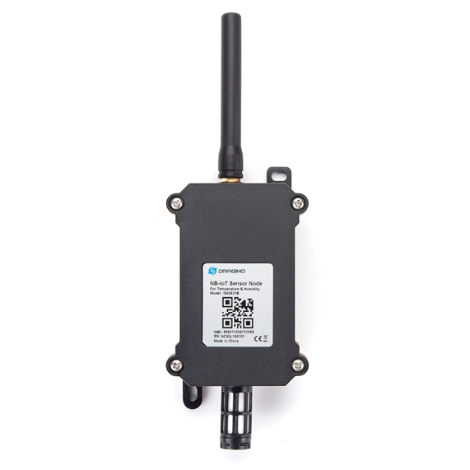

The Dragino N95S31B is a NB-IoT Temperature and Humidity Sensor for Internet of Things solution. It is used to measure the surrounding environment temperature and relative air humidity precisely, and then upload to IoT server via NB-IoT network*.

The temperature & humidity sensor used in N95S31B is SHT31, which is fully calibrated, linearized, and temperature compensated digital output from Sensirion, it provides a strong reliability and long-term stability.  The SHT31 is fixed in a waterproof anti-condensation casing for long term use.

N95S31B supports different uplink methods include TCP, MQTT, UDP and CoAP for different application requirement.

N95S31B is powered by 8500mAh Li-SOCI2 battery, It is designed for long term use up to several years. (Real-world battery life depends on the use environment, update period. Please check related Power Analyze report).

Features:

  • NB-IoT Bands: B1/B3/B8/B5/B20/B28 @H-FDD
  • Monitor Temperature & Humidity via SHT31
  • AT Commands to change parameters
  • Uplink on periodically
  • Downlink to change configure
  • IP66 Waterproof Enclosure
  • Ultra-Low Power consumption
  • AT Commands to change parameters
  • Micro SIM card slot for NB-IoT SIM
  • 8500mAh Battery for long term use



Applications:

  • Smart Buildings & Home Automation
  • Logistics and Supply Chain Management
  • Smart Metering
  • Smart Agriculture
  • Smart Cities
  • Smart Factory



    Specifications:





    Environment

    Operating Temperature

    -40 ~ 85°C

    Storage Temperature

    -40 ~ 85°C

    Protection Level

    IP66



    Sensor accuracy

    Temperature Sensor

    Temperature range

    -40 ~ 80°C

    Accuracy

    ±0.2 @ 0-90 °C.

    Resolution

    0.1°C

    Long Term Shift

    <0.03 °C/yr



    Humidity Sensor

    Humidity range

    0 ~ 99.9% RH

    Accuracy

    ±0.5°C (max ±2.0 °C).

    Resolution

    0.01% RH

    Long Term Shift

    <0.25 %RH/yr


     Datasheet:                  N95S31B  datasheet.pdf

    Operation manual:      N95S31B User manual.pdf

    NBIOT setup command:      Dragino BC950 type device setup fro NB.txt



    N95S31B - Dragino NB-IoT Outdoor Temperature and Humidity Sensor -40 to + 80°C
