Sku: XPCW1002100B

AUD$40.15
Availability: Many In Stock
Sku: XPCW1002100B
WiFi
Lantronix

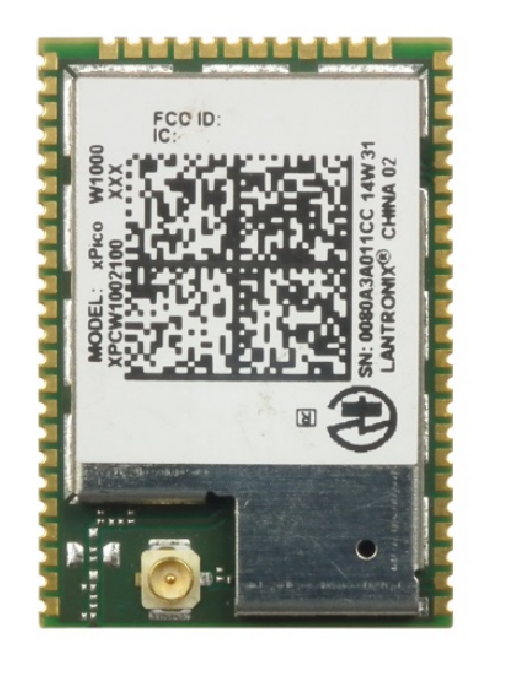

xPico® Wi-Fi® SMT (u.FL connector version)



Wireless LAN Interface

  • IEEE 802.11 b/g and IEEE 802.11n (single stream) WLAN interface (2.4 GHz only)
  • IEEE 802.11 d/h/i/j/k/w/r
  • u.FL connector for external antenna

Serial Interface

  • Two Serial CMOS Ports (3.3V, 5V tolerant)
  • 300 to 921.6 Kbps
  • Flow control XON/XOFF, RTS/CTS (SPort 1 only)
  • Lantronix tunneling application

Host Interface

  • Dual Serial Port, SPI, USB 2.0* (device)
  • 8 GPIO

Network Protocols

  • TCP/IP, UDP/IP, DHCP, ARP, ICMP, DHCP, Auto-IP, DNS, SNMPv1

Networking Capabilities

  • Soft Access Point with DHCP Server
  • Lantronix SmartRoam Technology* continually tracks Wi-Fi signal strength within range, along with preauthentication and caching resulting in smooth and automatic transition to access points without delay.
  • QuickConnect: Dynamic Profiles facilitate easy and rapid connections to access points

Management and Control

  • Web Server – Landing Page
  • CLI (Serial Monitor Port)
  • XML import and Export (XCR)
  • Field upgradable firmware (OTA)

Security

  • IEEE 802.11i Support – WPA-Personal, WPA2-Personal
  • 256-bit AES Encryption*

Architecture

  • ARM Cortex M3 class processor with on-chip Flash and SRAM
  • 1MB Flash and 128 KB SRAM
  • 1MB SPI Flash storage

Power

  • Input Voltage: 3.3VDC
  • Low power consumption of approximately 6μA standby

Physical Interface

  • 40-pin Board-to-Board SMT Connector

Environmental

  • Operating Temp: -40° to +85° C
  • For operation over +70° C a thermal pad is required
  • Storage Temp: -40° to +85° C
  • Relative Humidity: 0% to 90% non-condensing

Certifications

  • FCC Class B, UL and EN EMC, Japan

Packaging

  • Dimensions: 24mm (L) x 16.5mm (W) x 5.64mm (H)
  • Weight: 2.5g

Warranty

5-Year Limited



Document

Size

xPico Wi-Fi SMT – Product Brief

286 kB

xPico Wi-Fi – User Guide

3 MB

xPico Wi-Fi SMT – Data Sheet

2 MB

xPico Wi-Fi SMT – Integration Guide

3 MB

xPico Wi-Fi – Evaluation Kit Quick Start Guide

2 MB

xPico Wi-Fi – Evaluation Kit User Guide

2 MB

Notification: Soldering Profile and Washing

248 kB

Embedded Product Comparison Matrix

324 kB





XPCW1002100B - Lantronix Xpico WiFi SMT Serial to WiFi module
