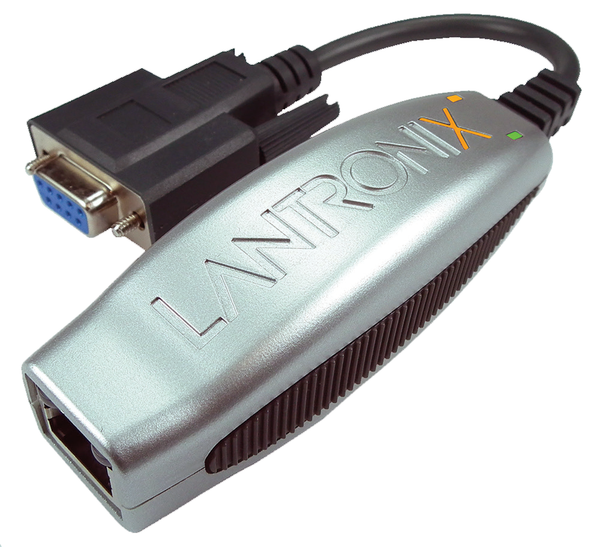

XDT2321002-01-S - Lantronix XDirect Serial-to-Ethernet Device Server

Sku: XDT2321002-01-S

AUD$175.00

Availability: Many In Stock

Sku: XDT2321002-01-S

Product Type: Ethernet

Vendor: Lantronix

Description
Reviews (0)

XDT2321002-01-S

xDirect® is a sleek and compact Serial-to-Ethernet device server, providing quick and easy Ethernet connectivity to virtually any device or machine with a serial interface.

With an integrated Ethernet port and serial cable, multiple power options including PoE and an industry-best five year warranty, xDirect provides a portable, extremely flexible and highly affordable network connectivity solution.

xDirect comes with a built-in web server that enables users to access and configure the unit using a standard web browser on a PC, smartphone, or tablet from anywhere.
With plug-and-play simplicity, small form factor, multiple power options, and a robust device server application, xDirect provides the easiest and shortest path to network connectivity ‘right on the wire’

Features & Specifications

Serial Interface

Interface

Modes: RS232, RS422* or RS485* (2 and 4 wire support)

Connectors

1 DB9F DCE serial port

Data Rates

Software-selectable baud rate from 300 to 921.6KBaud

Serial Line Format

Characters

7 or 8 data bits

Parity

odd, even, none

Stop Bits

1 or 2

Flow Control

Control Signals

DTR, DSR/DCD

Flow Control

XON/XOFF (Software); CTS/RTS (Hardware)

Network Interface

Interface

10Base-T/100Base-TX Ethernet port

Software selectable Ethernet speed 10/100/Auto
Software selectable Half/Full/Auto duplex

Connector

RJ45

Standards

ARP, UDP, TCP, ICMP, Telnet, TFTP, AutoIP, DHCP, HTTP, SNMP TCP, UDP, and Telnet, TFTP

Indicators (LED)

Power/Status, Link, Activity, Serial RX Activity & TX Activity

Processor

CPU

Lantronix DSTNI-EX 48 MHz clock

Memory

256 KB zero wait state SRAM, 2 MB Flash

Management

Lantronix DeviceInstaller GUI, Serial login, SNMP, Telnet login, HTTP

Power

• Input Voltage: 5V at mini-USB-B jack
• Input Voltage: 5-15 VDC at DB9F pin 9
• Power Consumption: 1.3W max w/o PoE, 2.0W max with PoE

Environmental

Operating

-40° to 85° C (-40° to 185° F), non-PoE models

-40° to 70° C (-40° to 158° F), PoE model

Storage

-40° to 85° C (-40 to 185° F)

Agency Approvals

UL 60950-1, 2nd Edition
CAN/CSA C22.2 No. 60950-1-07, 2nd Edition
CE
VCCI
C-Tick
IEC 60950-1 2005, 2nd Edition

Software

Windows 7/Vista/XP/2008 Server/2003 Server (32-bit and 64- bit versions), DeviceInstaller™ configuration software, Com Port Redirector software and related utilities

Configuration Options: Web Browser, Telnet Client, Serial Terminal

Packaging

Material

Metal enclosure with integrated wall mounts; optional 35 mm DIN-rail mount available

Dimensions (LxWxH)

240 x 33 x 29 mm

Weight

Weight: 0.068 Kg (0.15 lbs)

IP Rating

Shipping Dimensions

Dimensions (LxWxH)

180 x 130 x 53 mm (LxWxH)

Weight

0..5 kg

Emissions

FCC Part 15 Subpart B Class A	Radiated Emissions 30MHz – 1000MHz
ICES-003 Issue 4 February 2004 Class A	Radiated Emissions 30MHz – 1000MHz
AS/NZS CISPR 22: 2004 Class A	Radiated Emissions 30MHz – 1000MHz
EN55022: 1998 + A1: 2000 + A2: 2003 Class A	Radiated Emissions 30MHz – 1000MHz
VCCI V-3/2005.04 Class A	Radiated Emissions 30MHz – 1000MHz
EN61000-3-2: 2000 Class A	Harmonic Current Emissions
EN61000-3-3: 1995 + A1: 2001	Fluctuations and Flicker

Immunity

EN55024: 1998	+A1: 2001 +A2: 2003
IEC_61000-4-2: 1995	ESD 8kV Air Discharge (Direct), 4kV Contact Discharge (Direct/Indirect)
IEC_61000-4-3: 1995	Radiated Immunity 3.0V/m, 1KHz AM Sine Wave at 80%
IEC_61000-4-4: 1995	EFT/Burst 1.0kV Power Lines, 0.5kV I/O Lines
IEC_61000-4-5: 1995	Surge Immunity 1.0kV Common Mode, 1.0 kV Differential Mode
IEC_61000-4-6: 1996	Conducted Immunity 3.0 Vrms, 80% AM Modulated (1KHz)
IEC_61000-4-8: 1993	Magnetic Field Immunity 50Hz 1.0 Arms/m
IEC_61000-4-11: 1994	Voltage Dips and Interrupts (>95%,0.5 periods), (30%,25 periods), (>95%,250 periods)

Isolation

Designed with protection against transients and ESD for use under harsh environments.

Serial Port

15 kV ESD protection on RS232 and RS422/485 transceivers

Power Input

Up to non-repeated 600 W 10/100 usec pulse protection against transient over voltages

Ethernet Port

1500 VAC isolation shielded with shield connected to chassis ground for signal integrity and ESD protection

Part number:

XDT2321002-01-S

xDirect232 Single Port RS232 10/100 Device Server, 100-240 VAC International Power Supply with Regional Adapters, RoHS

XDT4851002-01-S

xDirect485 Single Port RS232/422/485 10/100 Device Server, 100-240 VAC International Power Supply with Regional Adapters, RoHS

XDT10P0-01-S

xDirect PoE Single Port RS232/422/485 10/100 Device Server, No Power Supply, RoHS

Docs & Downloads for xDirect

Document	Size
Certificate of Compliance- RoHS and REACH: SVHC – xDirect®Serial-to-Ethernet Device Server	101 KB
xDirect – Product Brief	937 KB
xDirect – Product Brief (A4 Format)	1 MB
xDirect – Quick Start Guide	592 KB
xDirect – User Guide	4 MB
External Product Comparison Matrix	546 KB
xDirect – Suppliers Declaration of Conformity	269 KB

Firmware Downloads

xDirect Firmware
