Sku: MIT-69G-1248BNNMH

AUD$118.52
Availability: Many In Stock
Sku: MIT-69G-1248BNNMH
Power Supply, Battery
MSTronic Co., Ltd

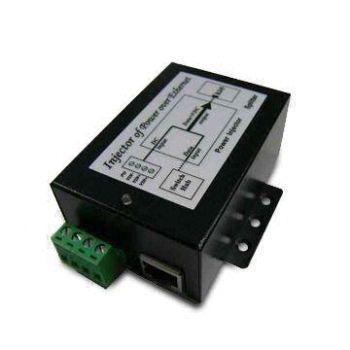

24W DC/DC PoE Injecto

- Extended Temperature.

Input Voltage

9 to 36VDC

Output Voltage

48VDC

Max Load

0.42A

Power

20W

Min Load

0.01A

Load reg.%

5%

Line Reg.%

1%

Ripple%

1%



Noise

1%

Operation temperature

-40C to 75C

Dimensions

35W x 82H x 56L mm

Casing

Metal





PROTECTION

* Short Circuit Protection ;  Output Short GND Terminal will not damage the Power Supply and will auto-Reset.

* Over Current : 120% ~ 160% @120Vac Input F.L

* High Voltage Protection: Output DC voltage over 52V will stop output.

* Input with Fuse Protection.

* Safety Standard: meet UL1950, CSA 22.2 &TUV EN60950.

* EMC : meet FCC Class B , EN55022 Class B, EN60945

* Low input voltage protection: input lower than 8V will cut off the connection.




Datasheet: MIT-69G-1248BNNMH.pdf



MIT-69G-1248BNNMH - 12V to 48V 20W DC/DC POE Injector - Extended Temperature
