Sku: MIT-07G-24BNNN
AUD$95.00
Availability:
Many In Stock
Sku: MIT-07G-24BNNN
Power Supply, Battery
MSTronic Co., Ltd

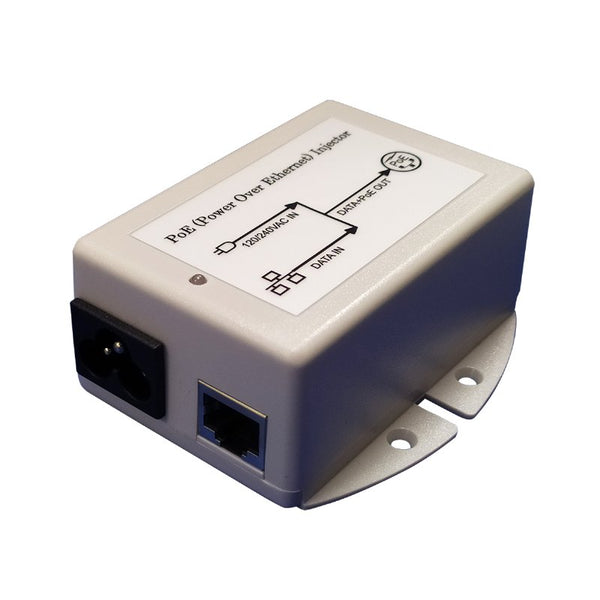

24W 24V AC/DC PoE Injector - come with Australia AC cord.
|
Input Voltage |
120 / 230VAC |
|
Output Voltage |
24VDC |
|
Max Load |
1A |
|
Power |
24W |
|
Min Load |
0.1A |
|
Load reg.% |
5% |
|
Line Reg.% |
1% |
|
Ripple% |
1% |
|
Noise |
1% |
|
Operation temperature |
-40C to 70C |
|
Dimensions |
78W x 85H x 36L mm |
|
AC cord |
Australia |
PROTECTION
* Short Circuit Protection ; Output Short GND Terminal will not damage the Power Supply and will auto-Reset.
*Input with Fuse Protection.
*High Pot: 4242Vdc, 60Sec, Input Terminal to output Terminal.
*Meet DOE Level 6 (USA-VI )
Datasheet: MIT-07G-24BNNN.pdf
