Sku: MIT-70G-1256BDNN
AUD$128.04
Availability:
Many In Stock
Sku: MIT-70G-1256BDNN
Power Supply, Battery
MSTronic Co., Ltd

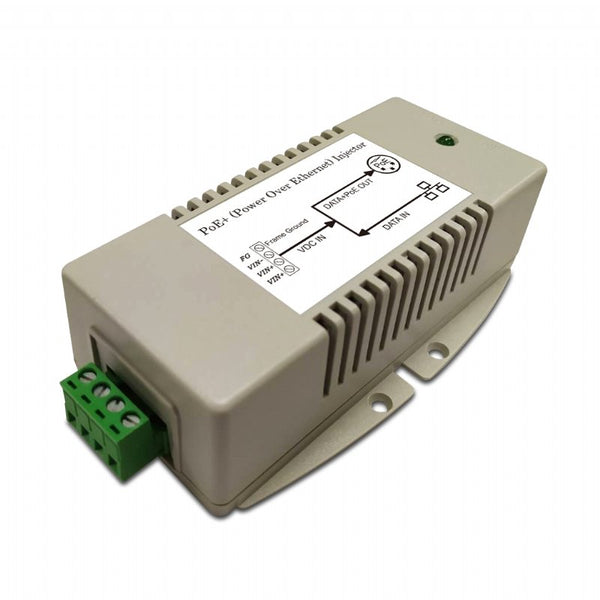

35W DC/DC PoE Injector
- Extended Temperature.
|
Input Voltage |
10-15VDC |
|
Output Voltage |
56VDC |
|
Max Load |
0.625A |
|
Power |
35W |
|
Min Load |
0A |
|
Load reg.% |
5% |
|
Line Reg.% |
1% |
|
Ripple% |
1% |
|
Noise |
1% |
|
Operation temperature |
-40C to 70C |
|
Dimensions |
125*72*38 mm |
|
Casing |
plastic |
PROTECTION
* Short Circuit Protection ; Output Short GND Terminal will not damage the Power Supply and will auto-Reset.
* Over Current : 120% ~ 160% @120Vac Input F.L
* Input Over Voltage Protection : 15.3V ~ 15.8V Turn-off Input Voltage
* Input Over low Voltage Protection : 8.8V ~ 9.3V Turn-off Input Voltage
* Input with Fuse Protection.
* Safety Standard : meet IEC 62368-1..
* EMC : meet FCC Class A, EN55032 Class A,
Datasheet: MIT-70G-1256BDNN.pdf
