Sku: NSE01

$146.00
Availability: Many In Stock
Sku: NSE01
NBIoT
Dragino

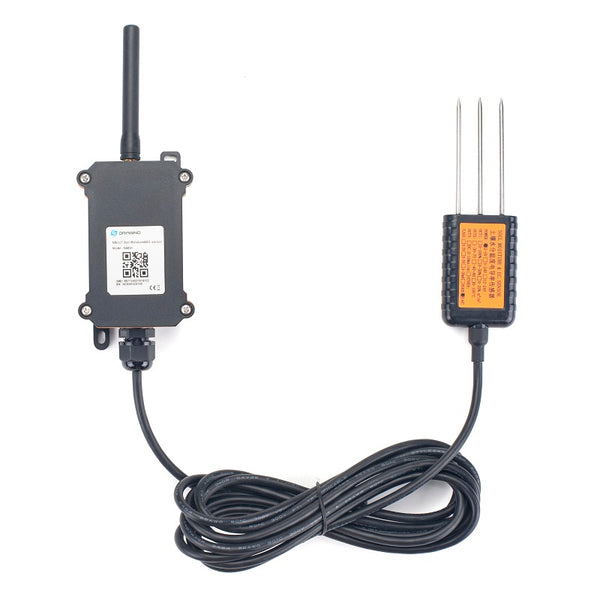

The Dragino NSE01 is a NB-IoT Soil Moisture & EC Sensor designed for IoT of Agriculture. It detects Soil Moisture, Soil Temperature and Soil Conductivity, and upload the value via wireless to IoT Server via NB-IoT Network.

NarrowBand-Internet of Things (NB-IoT) is a standards-based low power wide area (LPWA) technology developed to enable a wide range of new IoT devices and services. NB-IoT significantly improves the power consumption of user devices, system capacity and spectrum efficiency, especially in deep coverage.

NSE01 supports different uplink methods include TCP, MQTT, UDP and CoAP for different application requirement.

NES01 is powered by 8500mAh Li-SOCI2 battery, It is designed for long term use up to 5 years. (Actually Battery life depends on the use environment, update period & uplink method)

To use NSE01, user needs to check if there is NB-IoT coverage in local area and with the bands NSE01 supports. If the local operate support it, user needs to get a NB-IoT SIM card from local operator and install NSE01 to get NB-IoT network connection.

Features:

  • NB-IoT Bands: B1/B3/B8/B5/B20/B28 @H-FDD
  • Monitor Soil Moisture
  • Monitor Soil Temperature
  • Monitor Soil Conductivity
  • AT Commands to change parameters
  • Uplink on periodically
  • Downlink to change configure
  • IP66 Waterproof Enclosure
  • Ultra-Low Power consumption
  • AT Commands to change parameters
  • Micro SIM card slot for NB-IoT SIM
  • 8500mAh Battery for long term use

Applications:

  • Smart Agriculture



      Common DC Characteristics:

      • Supply Voltage: 2.1v ~ 3.6v
      • Operating Temperature: -40 ~ 85°C

       NB-IoT Spec:

      • B1 @H-FDD: 2100MHz
      • B3 @H-FDD: 1800MHz
      • B8 @H-FDD: 900MHz
      • B5 @H-FDD: 850MHz
      • B20 @H-FDD: 800MHz
      • B28 @H-FDD: 700MHz

      Specifications:





      Environment

      Operating Temperature

      -40 ~ 85°C

      Storage Temperature

      -40 ~ 85°C

      Protection Level

      IP66



       Datasheet:                  NSE01  datasheet.pdf

      Operation manual:      NSE01 User manual.pdf

      NBIOT setup command:      Dragino BC950 type device setup fro NB.txt



      NSE01 - Dragino NSE01 NB-IoT Soil Moisture & EC Sensor
