Sku: SDI12-LB-AS923

$66.00
Availability: Many In Stock
Sku: SDI12-LB-AS923
LoRawan
Dragino

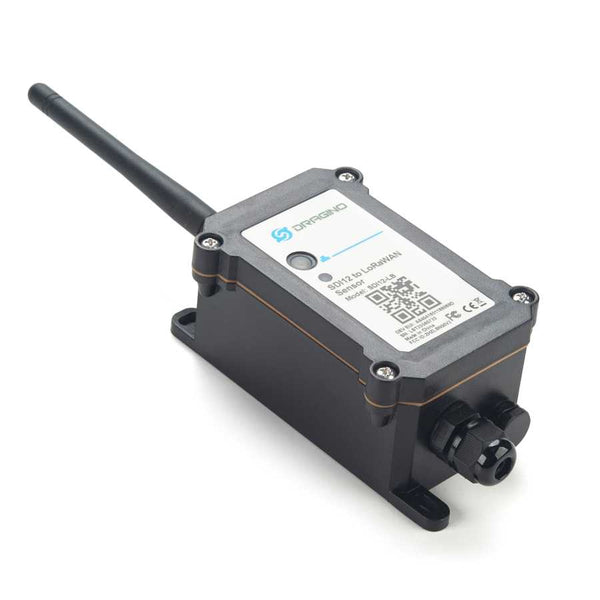

he Dragino SDI-12-LB is a SDI-12 to LoRaWAN Converter designed for Smart Agriculture solution. It turns your exisitng SDI-12 device into LoRawan communication.

SDI-12 (Serial Digital Interface at 1200 baud) is an asynchronous serial communications protocol for intelligent sensors that monitor environment data. SDI-12 protocol is widely used in Agriculture sensor and Weather Station sensors.

SDI-12-LB has SDI-12 interface and support 12v output to power external SDI-12 sensor. It can get the environment data from SDI-12 sensor and sends out the data via LoRaWAN wireless protocol.

The LoRa wireless technology used in SDI-12-LB allows device to send data and reach extremely long ranges at low data-rates. It provides ultra-long range spread spectrum communication and high interference immunity whilst minimizing current consumption.

SDI-12-LB is powered by 8500mAh Li-SOCI2 battery, it is designed for long term use up to 5 years.

Each SDI-12-LB is pre-load with a set of unique keys for LoRaWAN registrations, register these keys to local LoRaWAN server and it will auto connect after power on.

Default FW in AS923, but it support US915, AU915 and all 900MHz Frequency by loading different FW, it could also support 868MHz if loading 868MHz FW, but there will be slight 0.5-1dB loss here.

Features:

  • LoRaWAN 1.0.3 Class A
  • Ultra-low power consumption
  • Controllable 5v and 12v output to power external sensor
  • SDI-12 Protocol to connect to SDI-12 Sensor
  • Monitor Battery Level
  • Bands: CN470/EU433/KR920/US915/EU868/AS923/AU915/IN865
  • Support BLE and LoRaWAN remote configure.
  • Support wireless OTA update firmware
  • Uplink on periodically
  • Downlink to change configure
  • 8500mAh Battery for long term use

Applications:

  • Smart Agriculture



      Specifications:




      Overview
      Dimension
      135*70*30mm
      Net Weight
      105g




      Radio

      Frequency

      LoRaWAN®

      CN470/EU868/US915/AS923Mhz,or

      Working Mode

      Class A and C (default Class A)

      Activation

      ABP/OTAA activation;





      Power

      Input

      3.6 VDC battery

      Current consumption

      • Idle: 6uA@3.3v
      • 20dB Transmit: 130mA@3.3v
      5V sampling maximum current:500mA



      LoRaWAN frequency and Countries/Regions

      Frequency

      Status

      Countries/Regions



      EU868



      OK



      Europe and other



























      AU915, AS923



























      OK

      Australia

      New Zealand

      Brunei

      Cambodia

      Hongkong

      Indonesia

      Japan

      Laos

      Singapore

      Taiwan

      Thailand

      Vietnam

      CN470

      OK

      China

      US915

      OK

      USA

      KR920

      OK

      Korea



       Datasheet:                  SDI-12-LB datasheet.pdf

      Operation manual:      SDI-12-LB User manual.pdf

      Configure manual:      SDI-12-LB AT commands.pdf
