Sku: LSN50v2-D20-AS923

$65.00
Availability: Many In Stock
Sku: LSN50v2-D20-AS923
LoRawan
Dragino

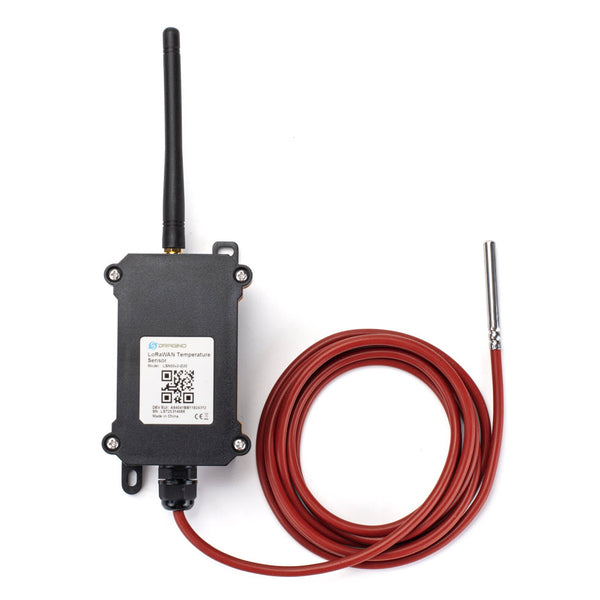

The Dragino LSN50v2-D2x is a LoRaWAN Temperature Sensor for Internet of Things solution. It is used to measure the air, liquid or object temperature, and then upload to IoT server via LoRaWAN wireless protocol.

The temperature sensor used in LSN50v2-D2x can measure -55°C ~ 125°C with accurancy ±0.5°C (max ±2.0 °C). The sensor cable is waterproof, moisture-proof and anti-rust for long term usage.

LSN50v2-D2x support temperature alarm feature, user can set temperature alarm for instant notice. LSN50v2-D2x is powered by 8500mAh Li-SOCI2 battery, It is designed for long term use up to 10 years. (Actually Battery life depends on the use environment, update period.Please check related Power Analyze report).

Each LSN50v2-D2x is pre-load with a set of unique keys for LoRaWAN registration, register these keys to local LoRaWAN server and it will auto connect after power on.

Default FW in AS923, but it support US915, AU915 and all 900MHz Frequency by loading different FW, it could also support 868MHz if loading 868MHz FW, but there will be slight 0.5-1dB loss here.

Feature:

  • LoRaWAN v1.0.3 Class A

  • Ultra low power consumption

  • Measure range -55°C ~ 125°C

  • Temperature alarm

  • Bands: CN470/EU433/KR920/US915 EU868/AS923/AU915/IN865

  • AT Commands to change parameters

  • Uplink on periodically

  • Downlink to change configure

Applications:

  • Wireless Alarm and Security Systems
  • Home and Building Automation
  • Automated Meter Reading
  • Industrial Monitoring and Control
  • Long range Irrigation Systems,etc.



Specifications:





Environment

Operating Temperature

-40 ~ 85°C

Storage Temperature

-40 ~ 85°C

Protection Level

IP66



Sensor accuracy

Temperature Sensor

Temperature range

-55 ~ 125°C

Accuracy

±0.5°C (max ±2.0 °C).

Cable length

2Meter



LoRaWAN frequency and Countries/Regions

Frequency

Status

Countries/Regions



EU868



OK



Europe and other



























AU915, AS923



























OK

Australia

New Zealand

Brunei

Cambodia

Hongkong

Indonesia

Japan

Laos

Singapore

Taiwan

Thailand

Vietnam

CN470

OK

China

US915

OK

USA

KR920

OK

Korea



 Datasheet:                  LSN50v2-D20 datasheet.pdf

Operation manual:      LSN50v2-D20 User manual.pdf

Configure manual:      LSN50v2-D20 AT commands.pdf

Other documents:      LSN50v2-D20Power Analyze.xlsx

Decorder:                    LSN50v2-D20 decorder - TTN.txt

LSN50v2-D20 - Dragino LoRaWAN Temperature Sensor Node DS18B20 -55 to 125C Outdoor
